DJI D-RTK 3 Multifunctional Station incl Survey Pole and Tripod

GNSS Frequency

GPS: L1C/A, L2C, L5

BDS: B1I, B2I, B3I, B1C, B2a, B2b

Galileo: E1, E5a, E5b, E6

GLONASS: L1, L2

QZSS: L1C/A, L2C, L5

L-Band

Rover Station Mode Accuracy

Static Measurement

Horizontal: 0.8 cm + 1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

Tilt Measurement

Angle Range: 0°to 60°

Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)

Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)

Category: Brand:

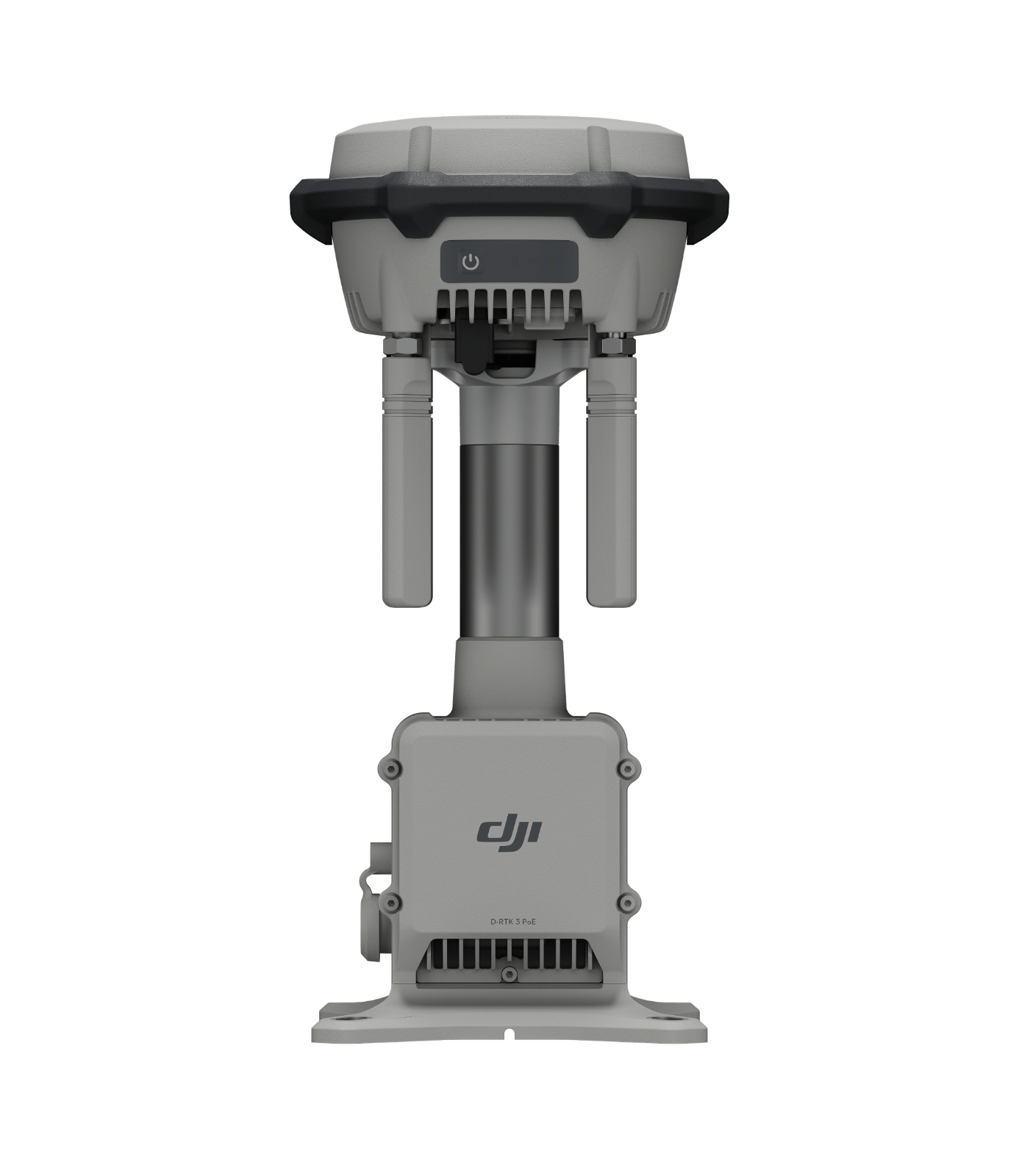

The DJI D-RTK 3 Multifunctional Station is a high-precision GNSS receiver that integrates advanced antennas and receiver modules capable of tracking data from major global satellite navigation systems. It supports multiple data transmission links and can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI Enterprise app and DJI Terra, offers a comprehensive solution for high-precision aerial surveying applications, ensuring secure and accurate operations.
